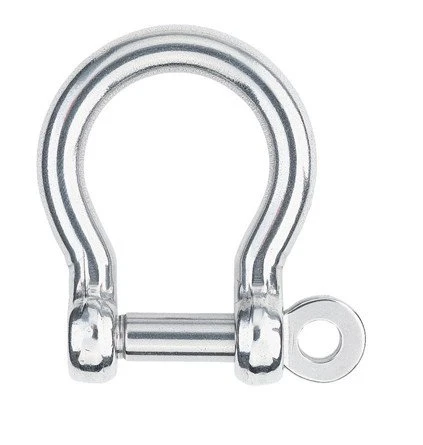

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.
Bow shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.
Product Specs:
Shackle pin Ø (mm)6 mm Shackle pin Ø (in)1/4 in Weight (g)29.5 g Weight (oz)1.04 oz A (mm)27 mm A (in)1 1/16 in B (mm)14 mm B (in)9/16 in C (mm)19 mm C (in)3/4 in Maximum working load (kg)750 kg Maximum working load (lb)1650 lb Breaking load (kg)1500 kg Breaking load (lb)3300 lb
